Atlas 6000 LB Air/Hydraulic Rolling Jack Bridge

Atlas RJ-6000 Air/Hydraulic Rolling Jack – 6,000 lb. Capacity

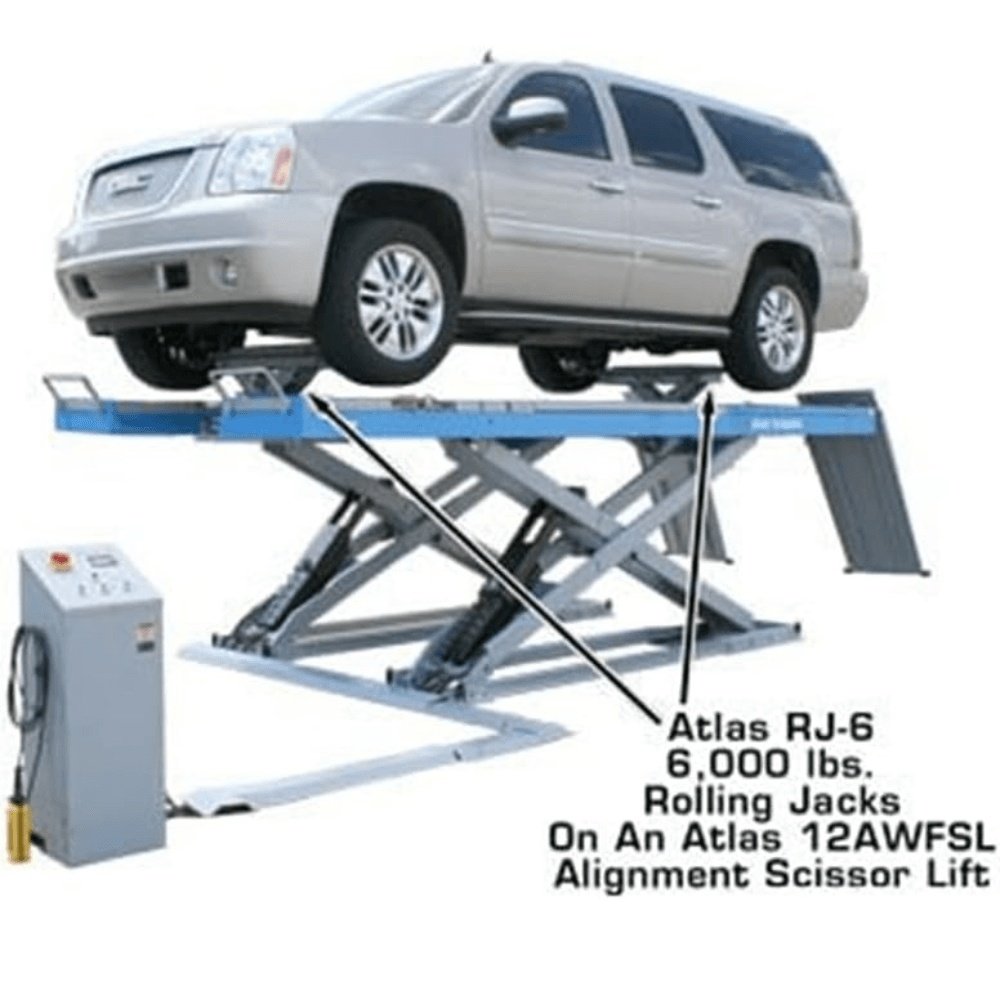

The Atlas RJ-6000 Air/Hydraulic Rolling Jack is a heavy-duty, commercial-grade rolling jack designed to lift and support up to 6,000 lbs. It is ideal for four-post above-ground lifts, allowing operators to raise the front or rear portion of a vehicle for wheel, brake, and suspension service.

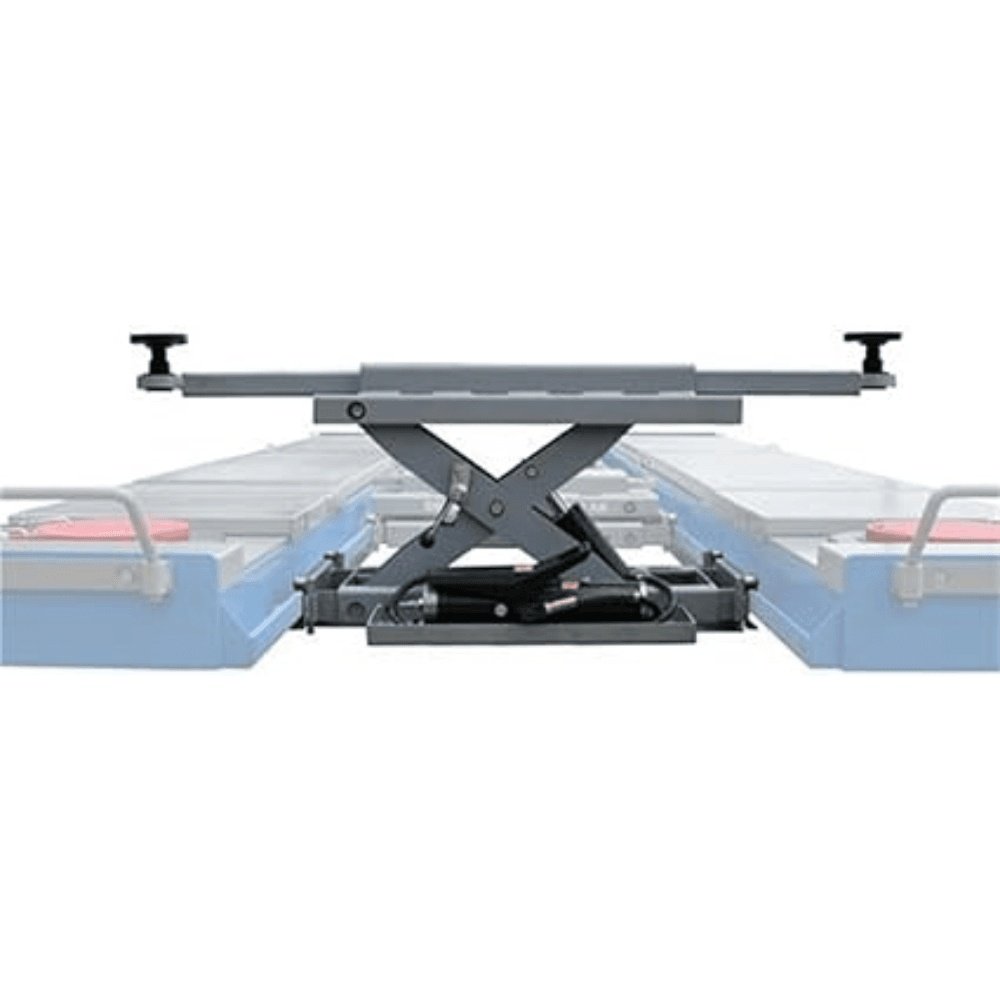

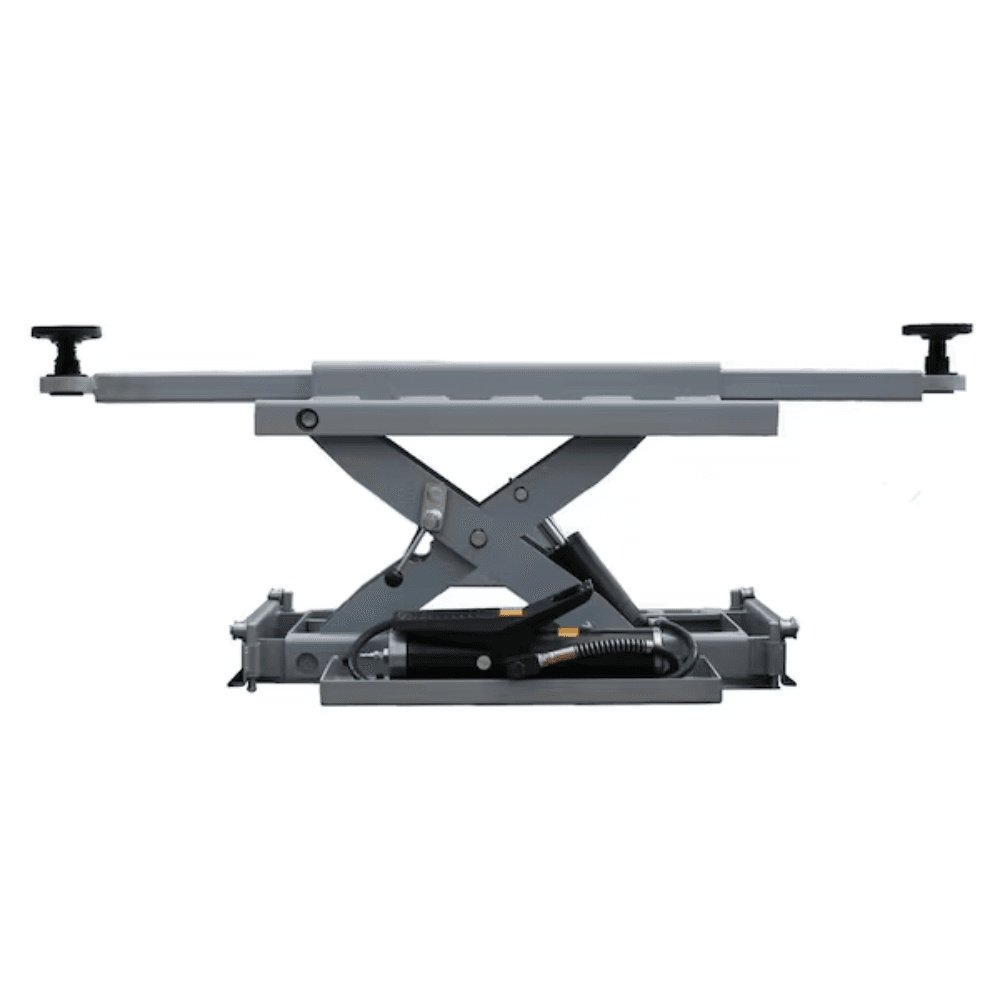

Equipped with telescoping arms, expandable supports, and a scissor mechanism, the RJ-6000 ensures level lifting and easy positioning under various vehicle types. The smooth-rolling system allows the jack to glide effortlessly along the runways of most four-post lifts, making it a must-have tool for commercial auto shops.

The included peg-style truck adapters increase lifting height, making the RJ-6000 suitable for both standard passenger cars and larger trucks.

Key Features & Benefits
6,000 lb. Lifting Capacity – Perfect for cars, SUVs, light trucks, and heavy-duty vehicles.
Air/Hydraulic Operation – Requires compressed air (70-95 PSI) for smooth lifting.
Scissor Mechanism – Provides level and secure lifting.
Expandable Supports – Adjusts to fit different four-post lift brands.
Smooth Rolling Action – Features heavy steel wheels for easy movement.
Safety Lock Positions –
First Locking Position: 7”
Second Locking Position: 10.5”
Locks act as jack stands for secure vehicle suspension.
Compact, Low-Profile Design – Easy to store when not in use.
Durable Powder-Coated Finish – Protects against wear and corrosion.
Adapters Included – Peg-style truck adapters for increased lifting height.
RJ-6000 Color May Vary (Blue or Black).
Technical Specifications
Specification Measurement / Detail
Maximum Lifting Capacity 6,000 lbs.
Maximum Width 55 ¾”
Minimum Width 35″
Distance Between Runway Capability 32″ – 52″
First Locking Position 7″
Second Locking Position 10 1/2″
Maximum Lifting Height (With Adapters) 21 3/4″
Minimum Lifting Height 8 1/4″
Lifting Pad Height 1 1/4″
Short Adapter Height 1 1/2″
Tall Adapter Height 3″
Recommended Operating Pressure 70-95 PSI
Shipping Weight 350 lbs.
Why Choose the Atlas RJ-6000 Air/Hydraulic Rolling Jack?
The Atlas RJ-6000 is the perfect addition to any four-post lift, offering heavy-duty lifting power, superior maneuverability, and added safety features. Whether you need to perform wheel, brake, or suspension work, this rolling jack provides the stability and flexibility needed for professional-grade vehicle service.

For auto repair shops and professionals looking for a reliable, high-capacity rolling jack, the Atlas RJ-6000 Air/Hydraulic Rolling Jack is a top choice!
